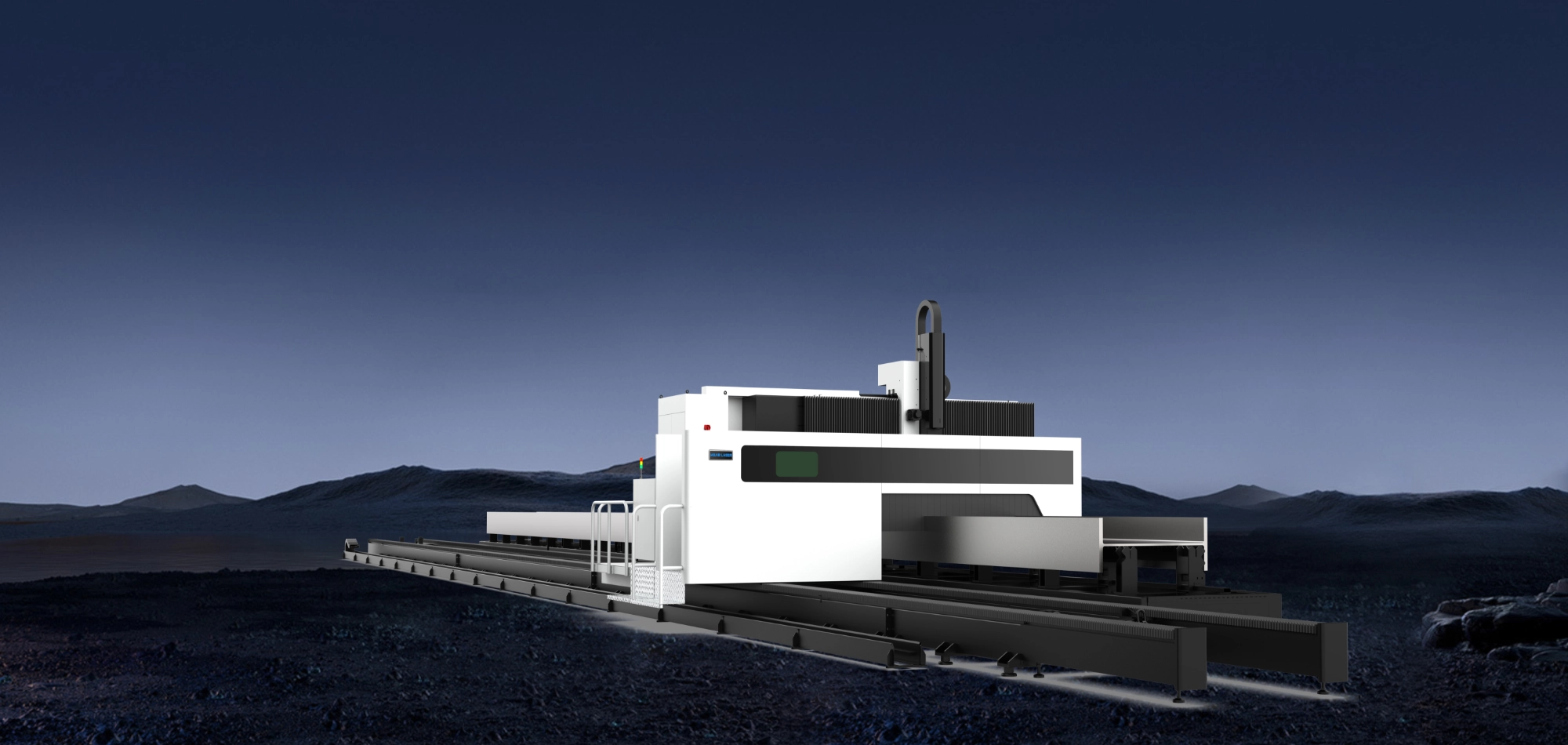

The universal solution for the steel construction industry.
Customized research and development for the steel structure industry, specifically for steel I-beams, HW, HM, HN profiles.All-round assistance to the steel structure industry in reducing costs and increasing efficiency.
High efficiency and cost reduction due to the dual station table design.
Adopting the design of crawler heavy-duty machine with two-position table, cutting, loading and unloading can be carried out simultaneously, which saves the time and labor cost of loading and unloading.
Efficient groove machining.
Support V/K/X/X/Y groove cutting, high-performance and high-precision AB shaft design and flat cutting. Automatic plate tilt compensation to ensure accurate part size; support air cutting and secondary groove opening.
Precise compensation of the workpiece.
Precise compensation of the blade trajectory of the plate and wing wall, reducing thermal stress, deformation and smoothness of the cross-section. One-time molding, eliminating tedious process and saving labor costs.
Technical Parameter
mm
inch
Model
 TP
Configured Power
12000W-20000W
X/Y Axis Positioning Accuracy
±0.25mm
X/Y Axis Repeat Positioning Accuracy
±0.05mm
Mainframe Size
31000*5000*3700
Cutting Scenarios
Web/flange cutting, beveling, welding through-holes, bolt holes, marking, etc.
Cutting Range
Flange 200mm≤h≤500mm;Web 200mm≤b≤1250mm
Model
 TP
Configured Power
12000W-20000W
X/Y Axis Positioning Accuracy
±0.0098425 inch
X/Y Axis Repeat Positioning Accuracy
±0.0019685 inch
Mainframe Size
31000*5000*3700
Cutting Scenarios
Web/flange cutting, beveling, welding through-holes, bolt holes, marking, etc.
Cutting Range
Flange 7.8740157inch≤h≤19.6850394inch;Web 7.8740157inch≤b≤49.2125984 inch
