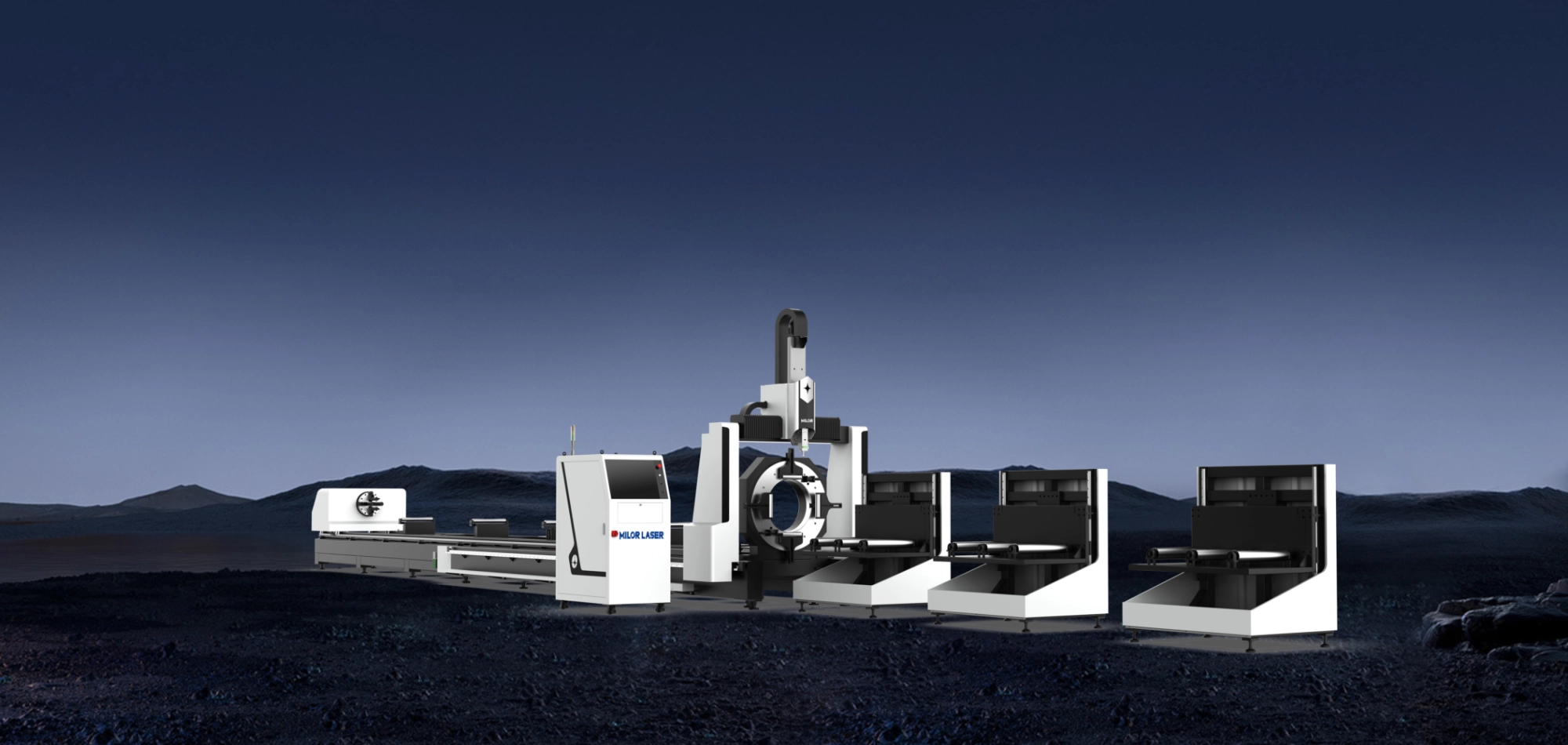

New double keel bed design.
Using horizontal bed design, proprietary double keel design, low center of gravity, heavy load, more stable cutting of heavy pipes.
Mobile gantry design.
The gantry motion can meet the conditions of processing long workpieces. Stable cutting and easy cutting.
A powerful large-caliber cartridge.
Do not be afraid of heavy large diameter pipes. Clamp for pipes max. 680 mm, load 2000 kg.
The fulcrum is in place like a shadow.
Highly sensitive independent servo-driven tracking bearing, real-time lift height adjustment to ensure cutting stability while the pipe is rotating.
Technical Parameter
mm
inch
Model
 TR6060 TR12060
Power
3000w-12000w 3000w-12000w
Effective cutting diameter of round tube
φ20-590mm φ20-590mm
Effective cutting diameter of square tube
□20-400mm □20-400mm
Y-axis maximum acceleration
0.5G 0.5G
Maximum cutting length
6300mm 12300mm
Maximum chuck speed
30r/min 30r/min
Model
 TR6060 TR12060
Power
3000w-12000w 3000w-12000w
Effective cutting diameter of round tube
φ0.787-23.22inch φ0.787-23.22inch
Effective cutting diameter of square tube
□0.787-15.74inch □0.787-15.74inch
Y-axis maximum acceleration
0.5G 0.5G
Maximum cutting length
248.03inch 484.25inch
Maximum chuck speed
30r/min 30r/min
