The bus system is intelligent and efficient
Intelligent and efficient tire system Intelligent tire control system Fast response, high precision, fast data transfer to achieve highly intelligent and flexible cutting
The power of the thick cut permeates the imagination.
High capacity thick sheet cutting process can easily cut 30-120mm medium and heavy sheets Cutting is stable and efficient
New double beam bed design
For processing thick sheets, independently designed double keel design with stop to cut thick sheets without deformation, to ensure long-term stable operation of the equipment.
New burnout protection and thermal insulation technology
Adopts a new type of flame retardant, anti-burn and heat insulating technology Ensures cutting accuracy and extends the life of the equipment
Technical Parameter
mm
inch
Model
 PG 3015 PG 6015 PG 4020 PG 6020 PG 6025 PG 8025 PG 12025
Laser power
8000w-60000w 8000w-60000w 8000w-60000w 8000w-60000w 8000w-60000w 8000w-60000w 8000w-60000w
Work area
3050*1530mm 6050*1530mm 4050*2030mm 6050*2030mm 6050*2530mm 8050*2530mm 12100*2530mm
Positioning accuracy
±0.03mm ±0.03mm ±0.03mm ±0.03mm ±0.03mm ±0.03mm ±0.03mm
Repositioning accuracy
±0.02mm ±0.02mm ±0.02mm ±0.02mm ±0.02mm ±0.02mm ±0.02mm
Maximum travel speed
120m/min 120m/min 120m/min 120m/min 120m/min 120m/min 120m/min
Maximum acceleration
1.5G 1.5G 1.5G 1.5G 1.5G 1.5G 1.5G
Model
 PG 3015 PG 6015 PG 4020 PG 6020 PG 6025 PG 8025 PG 12025
Laser power
8000w-60000w 8000w-60000w 8000w-60000w 8000w-60000w 8000w-60000w 8000w-60000w 8000w-60000w
Work area
120*60inch 238*60inch 159*79inch 238*79inch 238*99inch 316*99inch 476*99inch
Positioning accuracy
±0.0011811 inch ±0.0011811 inch ±0.0011811 inch ±0.0011811 inch ±0.0011811 inch ±0.0011811 inch ±0.0011811 inch
Repositioning accuracy
±0.0007874 inch ±0.0007874 inch ±0.0007874 inch ±0.0007874 inch ±0.0007874 inch ±0.0007874 inch ±0.0007874 inch
Maximum travel speed
120m/min 120m/min 120m/min 120m/min 120m/min 120m/min 120m/min
Maximum acceleration
1.5G 1.5G 1.5G 1.5G 1.5G 1.5G 1.5G

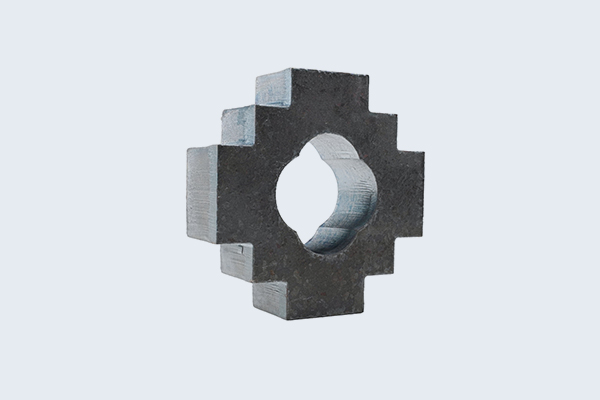

Cutting Sample
