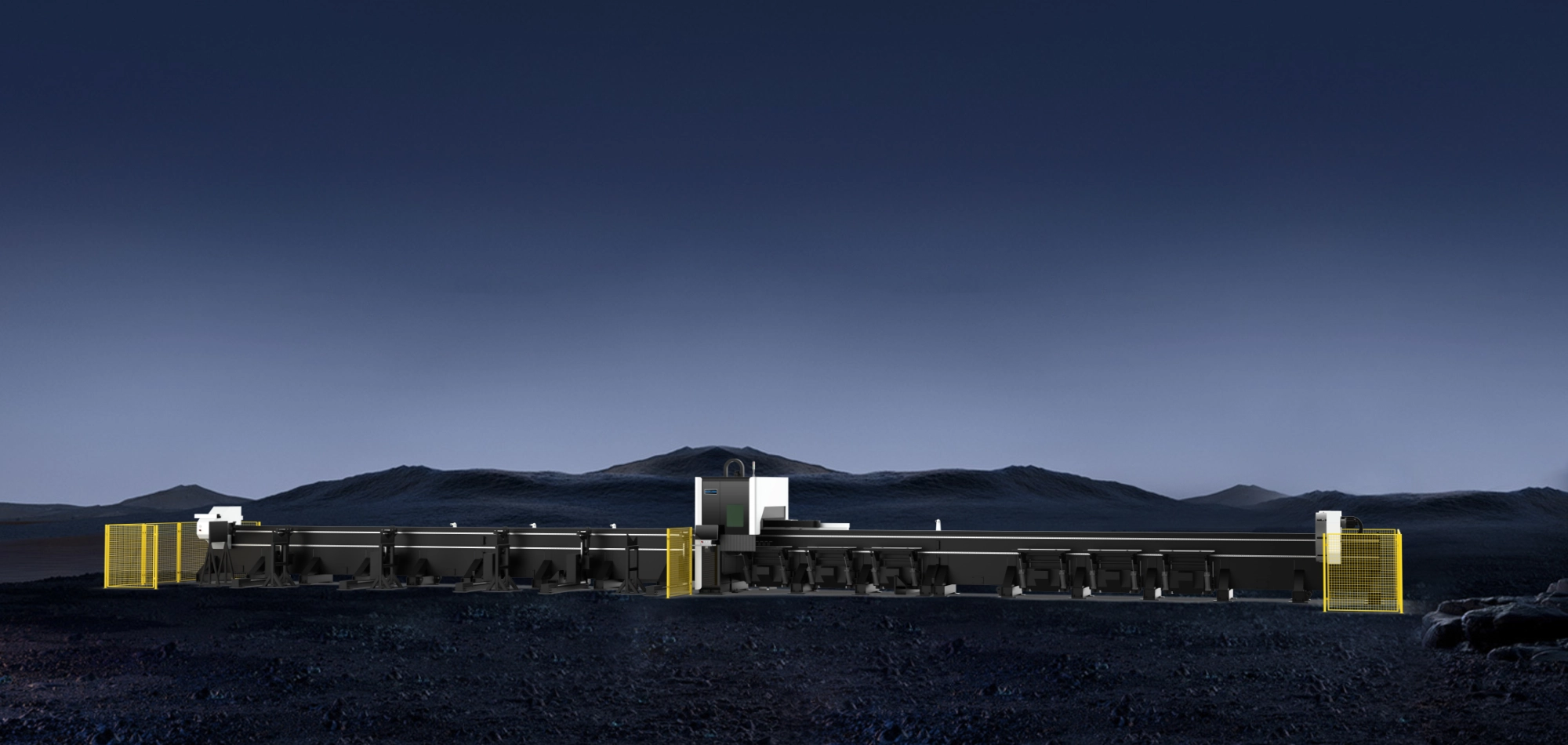

Fully mobile three-part cartridge with side mount
The fully mobile in-house developed three-part chuck makes it easy to fulfill various demanding working conditions such as cutting whole pipes, stable cutting of long pipe fittings and residue-free cutting.
Master the heaviest pipes and profiles possible
Support processing of round pipes, square pipes, channel steels, angle steels, H-shaped steels, etc. with pipe weight ≤ 1500kg and round pipe diameter 40-500mm.
Support is in place, like a shadow
Highly sensitive independent servo tracking support, real-time lift height adjustment, ensure stable cutting while the pipe is rotating.
Automatic loading and unloading system
Automatic loading and unloading system
Technical Parameter
mm
inch
Model
 TE
Laser power
3000w~12000w
Effective cutting diameter of round tube
Φ20-Φ350mm
Effective cutting diameter of square tube
□20-□350mm
Positioning accuracy
±0.05mm
Chuck maximum speed
60r/min
Maximum acceleration
0.6G
Model
 TE
Laser power
3000w~12000w
Effective cutting diameter of round tube
Φ0.78-Φ13.779inch
Effective cutting diameter of square tube
□0.78-□13.779inch
Positioning accuracy
±0.00197inch
Chuck maximum speed
60r/min
Maximum acceleration
0.6G
Cutting Sample
