Efficiency and practicality New modernization
Single-platform open structure enables multi-directional loading.
Highly intelligent and flexible cutting
New double beam bed design
Focusing on the needs of thick sheet processing, independently developed double keel design with stop; cutting thick sheets without deformation, which ensures long-term stable operation of the equipment.
Modular table top design
Modular table assembly design Stable table structure. Strong load-bearing capacity Ease of disassembly, replacement and maintenance
Highly efficient dust extraction
Larger diameter air duct design, independent control, baffle dust removal. Improved smoke and heat removal effect
Technical Parameter
mm
inch
Model
 F 3015 F 4015 F 6015 F 4020 F 6020 F 6025
Laser power
1000w~6000w 1000w~6000w 1000w~6000w 1000w~6000w 1000w~6000w 1000w~6000w
Work area
3050*1530mm 4050*1530mm 6050*1530mm 4050*2030mm 6050*2030mm 6050*2530mm
Positioning accuracy
±0.05mm ±0.05mm ±0.05mm ±0.05mm ±0.05mm ±0.05mm
Repositioning accuracy
±0.03mm ±0.03mm ±0.03mm ±0.03mm ±0.03mm ±0.03mm
Maximum travel speed
115m/min 115m/min 115m/min 115m/min 115m/min 115m/min
Maximum acceleration
0.8G 0.8G 0.8G 0.8G 0.8G 0.8G
Model
 F 3015 F 4015 F 6015 F 4020 F 6020 F 6025
Laser power
1000w~6000w 1000w~6000w 1000w~6000w 1000w~6000w 1000w~6000w 1000w~6000w
Work area
120*60inch 159*60inch 238*60inch 159*79inch 238*79inch 238*99inch
Positioning accuracy
±0.00197inch ±0.00197inch ±0.00197inch ±0.00197inch ±0.00197inch ±0.00197inch
Repositioning accuracy
±0.00118inch ±0.00118inch ±0.00118inch ±0.00118inch ±0.00118inch ±0.00118inch
Maximum travel speed
115m/min 115m/min 115m/min 115m/min 115m/min 115m/min
Maximum acceleration
0.8G 0.8G 0.8G 0.8G 0.8G 0.8G

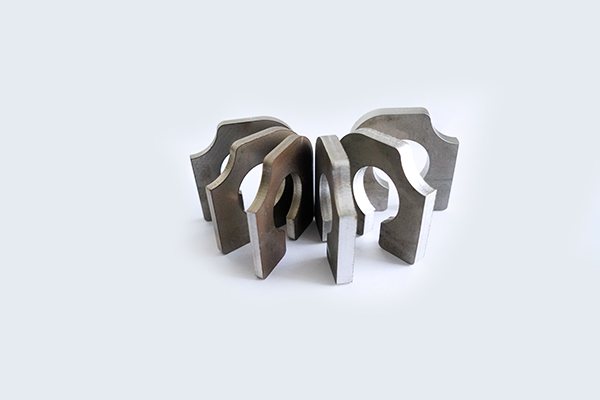

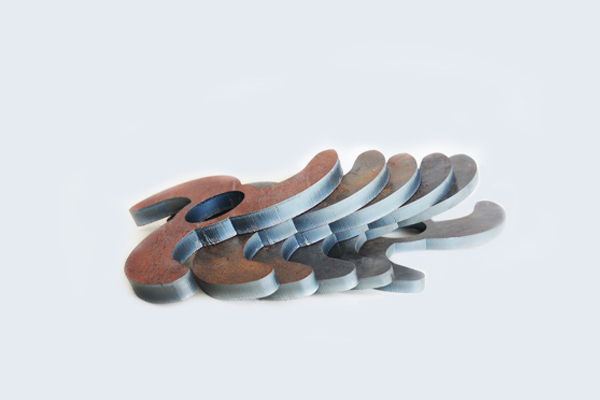

Cutting Sample
